ASUS TUF Gaming GeForce RTX 3070 OC

Graphics card ASUS TUF Gaming GeForce RTX 3070 OC, specifications and benchmarks

417 place in the overall ranking Graphics Cards!
Review of the ASUS TUF Gaming GeForce RTX 3070 OC 8 GB GDDR6 graphics card. Is it suitable for gaming, encoding, or 4K? What can the ASUS TUF Gaming GeForce RTX 3070 OC be compared to, and what equivalents are better or worse than this model? What equivalent is available for purchase? Choose a processor for ASUS TUF Gaming GeForce RTX 3070 OC 8 GB GDDR6 using detailed specifications and upgrade your workstation.

Specifications

Technical data
General Info

This section outlines the key features of the graphics card ASUS TUF Gaming GeForce RTX 3070 OC.

  • Based on
    NVIDIA GeForce RTX 3070
  • GPU Chip
    GA104-300-A1
  • Execution units
    46
  • Shader
    5888
  • Render Output Units
    96
  • Texture Units
    184
no data
Memory Specs

Specifications for onboard video memory, including type (e.g., GDDR6), capacity, and bandwidth. Higher capacity and bandwidth contribute to improved gaming and rendering performance.

  • Memory Size
    8 GB
  • Memory Type
    GDDR6
  • Memory Speed
    1.75 GHz
  • Memory Bandwith
    448 GB/s
  • Memory Interface
    256 bit
no data
Clock Frequency

Information on the base and boost clock speeds of the graphics card, which directly affect its performance in gaming and rendering applications. ASUS TUF Gaming GeForce RTX 3070 OC.

  • Base Clock
    1.500 GHz
  • Boost Clock
    1.845 GHz+ 7 %
  • Avg (Game) Clock
    1.815 GHz
  • Overclocking
    Yes
* see below
Thermal Management

Details on the thermal design power (TDP) of the graphics card, including the maximum thermal output under standard and overclocked conditions, guiding the selection of cooling solutions.

  • TDP
    220 W
  • TDP (up)
    250 W+ 4 %
  • Tjunction max
    93 °C
  • PCIe-Power
    2 x 8-Pin
no data
Cooler & Fan Types

Specifications of the cooling system, including fan types and configurations, which are critical for maintaining optimal operating temperatures during intensive workloads. ASUS TUF Gaming GeForce RTX 3070 OC.

  • Fan-Type
    Axial
  • Cooler-Type
    Air cooling
  • Fan 1
    3 x 95 mm
  • Noise (Idle)
    0 dB / Silent
  • Fan 2
    --
  • Noise (Load)
    44-45 dB
no data
Interfaces

Detailed information about connectivity options, including HDMI, DisplayPort, and DVI interfaces, along with their respective capabilities and supported resolutions.

  • Max. Displays
    4
  • HDCP-Version
    2.3
  • HDMI Ports
    2x HDMI v2.1
  • DP Ports
    3x DP v1.4a
  • DVI Ports
    --
  • VGA Ports
    --
  • USB-C Ports
    --
no data
Technical Data

An overview of the hardware capabilities of the graphics card, including support for technologies like ray tracing, DLSS, and Vulkan, which enhance graphical fidelity and performance.

  • Max. resolution
    7680x4320
  • DirectX
    12_2
  • Raytracing
    Yes
  • DLSS / FSR
    Yes
  • LED
    ASUS Aura Sync
no data
Supported Video Codecs

Support for various video codecs, such as H.264, HEVC, and VP9, which enhance video playback and streaming capabilities by offloading tasks from the CPU.

  • h264
    Decode / Encode
  • VP8
    Decode
  • h265 / HEVC
    Decode / Encode
  • VP9
    Decode
  • AV1
    Decode
no data
Dimensions
  • Length
    300 mm
  • Height
    127 mm
  • Width
    52 mm
  • Width (Slots)
    3 PCIe-Slots
  • Weight
    --
no data
Additional Information
  • GPU Interface
    PCIe 4.0 x 16
  • Release date
    Q4/2020
  • Release price
    759 $
  • Structure size
    8 nm
  • Part-no
    TUF-RTX3070-O8G-GAMING
  • Documents
    data sheet
no data
Positions in all rankings

Common positions ASUS TUF Gaming GeForce RTX 3070 OC GPU in popular benchmarks, for comparison with other models.

  • FP32 Performance (Single-precision TFLOPS)
    429 place
  • Battlefield 5
    489 place
  • Shadow of the Tomb Raider
    599 place
  • Crypto-Mining Ethereum Hashrate (MH/s)
    408 place
  • Crypto-Mining Ergo Hashrate (MH/s)
    335 place
  • Crypto-Mining Ravencoin Hashrate (MH/s)
    533 place
  • 3DMark Benchmark
    536 place
  • Crypto-Mining Vertcoin Hashrate (MH/s)
    161 place

Benchmarks

Performance tests GPU

Evaluate the performance scores from various benchmark tests for ASUS TUF Gaming GeForce RTX 3070 OC in comparison with other graphics cards to gain insights into the GPU's real-world speed during content processing.

Benchmarks encompass tasks such as floating point calculations, 3D model creation, and cryptocurrency mining.

FP32 Performance (Single-precision TFLOPS)
Benchmark FP32 is a 32-bit floating point calculation for the GPU which is required for 3D gaming
21.75
21.75
21.73
ASUS TUF Gaming GeForce RTX 3070 OC
21.73
Colorful iGame GeForce RTX 3070 Neptune OC LHR-V
3DMark Benchmark
3DMark is designed for gamers, overclockers and system builders who want to get the most out of their hardware
14358
14358
14334
ASUS TUF Gaming GeForce RTX 3070 OC
14334
Battlefield 5
Battlefield 5 is a realistic game, with a built-in benchmark, very suitable as a test for graphics cards
84 fps (avg)
84 fps (avg)
83 fps (avg)
ASUS TUF Gaming GeForce RTX 3070 OC
83 fps (avg)
Shadow of the Tomb Raider
Shadow of the Tomb Raider has a built-in benchmark, based on the Crystal Dynamics Foundation engine
54 fps (avg)
54 fps (avg)
53 fps (avg)
ASUS TUF Gaming GeForce RTX 3070 OC
53 fps (avg)
Crypto-Mining Ethereum Hashrate (MH/s)
Ethash is an algorithm for mining Ethereum cryptocurrency that makes the most of the GPU
Crypto-Mining Ergo Hashrate (MH/s)
The Autolykos algorithm, on which Ergo cryptocurrency is based, allows not only modern GPUs to be used for mining, but also the past generation of GPUs
165 MH/s
165 MH/s
164 MH/s
ASUS TUF Gaming GeForce RTX 3070 OC
164 MH/s
Crypto-Mining Ravencoin Hashrate (MH/s)
Hashrate mining Ravencoin cryptocurrency on the KawPoW algorithm is fastest on modern video cards
Crypto-Mining Vertcoin Hashrate (MH/s)
VertCoin cryptocurrency can be mined on both Nvidia and AMD and is interesting because it mines perfectly on old GPUs like GTX1050, R9 290 and even GTX970
1.25 MH/s
1.25 MH/s
1.24 MH/s
ASUS TUF Gaming GeForce RTX 3070 OC
1.24 MH/s

Synonyms

Similar graphics cards in terms of performance.

Similar in technical data GPU with ASUS TUF Gaming GeForce RTX 3070 OC.

MSI GeForce RTX 3070 Gaming Z Trio 8G View
GALAX GeForce RTX 3070 Ti EX (1-Click OC) View
ASUS Turbo GeForce RTX 3070 Ti View
ASUS ROG Strix LC Radeon RX 6950 XT OC Edition View
GALAX GeForce RTX 3070 Ti EX White (1-Click OC) View

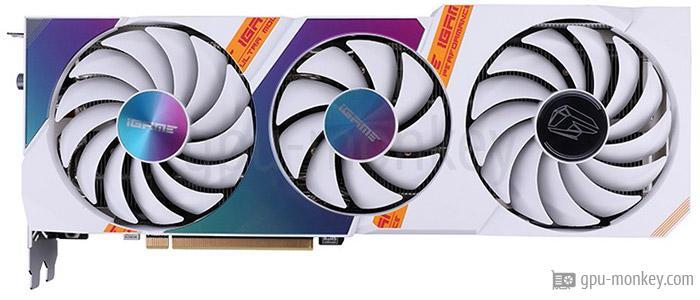

Colorful GeForce RTX 3070 Ti Ultra W OC 8G-V View
GALAX GeForce RTX 3070 Ti (1-Click OC) View
KFA2 GeForce RTX 3070 Ti (1-Click OC) View

*

Base Clock - the guaranteed speed specified by the manufacturer, reflecting the cooling and binning standards for which the GPU is factory-tested.

Boost Clock - the theoretical minimum speed achievable when overclocking the graphics card, taking into account cooling and binning considerations.
