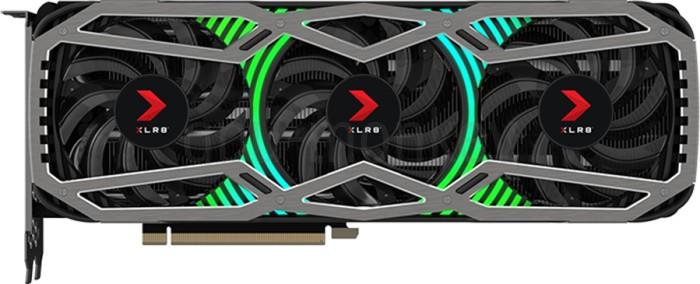

Scheda grafica PNY GeForce RTX 3080 XLR8 Gaming Uprising Epic-X RGB Triple Fan Edition, specifiche e parametri di riferimento

This section outlines the key features of the graphics card PNY GeForce RTX 3080 XLR8 Gaming Uprising Epic-X RGB Triple Fan Edition.

• Basato su
  NVIDIA GeForce RTX 3080
• Chip GPU
  GA102-200-K1-A1
• Unità di esecuzione
  68
• Shader
  8704
• Unità di uscita del rendering
  96
• Unità di texture
  272

Specifications for onboard video memory, including type (e.g., GDDR6), capacity, and bandwidth. Higher capacity and bandwidth contribute to improved gaming and rendering performance.

• Dimensione della memoria
  10 GB
• Tipo di memoria
  GDDR6X
• Velocità della memoria
  1.188 GHz
• Banda di memoria
  760 GB/s
• Interfaccia di memoria
  320 bit

Information on the base and boost clock speeds of the graphics card, which directly affect its performance in gaming and rendering applications. PNY GeForce RTX 3080 XLR8 Gaming Uprising Epic-X RGB Triple Fan Edition.

• Frequenza di base
  1.440 GHz
• Frequenza massima
  1.710 GHz
• Overclock
  Sì

Details on the thermal design power (TDP) of the graphics card, including the maximum thermal output under standard and overclocked conditions, guiding the selection of cooling solutions.

• TDP
  320 W
• TDP (up)
  370 W
• Tjunction max
  93 °C
• PCIe-Power
  2 x 8-Pin

Specifications of the cooling system, including fan types and configurations, which are critical for maintaining optimal operating temperatures during intensive workloads. PNY GeForce RTX 3080 XLR8 Gaming Uprising Epic-X RGB Triple Fan Edition.

• Fan-Type
  Axial
• Cooler-Type
  Air cooling
• Ventilatore 1
  3 x 90 mm
• Noise (Idle)
  0 dB / Silent
• Ventilatore 2
  --
• Noise (Load)
  42-44 dB

Detailed information about connectivity options, including HDMI, DisplayPort, and DVI interfaces, along with their respective capabilities and supported resolutions.

• Max. Visualizzazioni
  4
• Versione HDCP
  2.3
• Porte HDMI
  1x HDMI v2.1
• DP Ports
  3x DP v1.4a
• Porte DVI
  --
• VGA Ports
  --
• USB-C Ports
  --

An overview of the hardware capabilities of the graphics card, including support for technologies like ray tracing, DLSS, and Vulkan, which enhance graphical fidelity and performance.

• Risoluzione massima
  7680x4320
• DirectX
  12_2
• Raytracing
  Sì
• DLSS / FSR
  Sì
• LED
  Addressable LED

Support for various video codecs, such as H.264, HEVC, and VP9, which enhance video playback and streaming capabilities by offloading tasks from the CPU.

• h264
  Decode / Encode
• VP8
  Decode
• h265 / HEVC
  Decode / Encode
• VP9
  Decode
• AV1
  Decode

• Lunghezza
  294 mm
• Altezza
  112 mm
• Width
  56 mm
• Larghezza (slot)
  3 PCIe-Slots
• Weight
  --

• Interfaccia GPU
  PCIe 4.0 x 16
• Data di rilascio
  Q4/2020
• Release price
  739 $
• Processo tecnologico
  8 nm
• Part-no
  VCG308010TFXMPB
• Specifica
  data sheet

Posizioni comuni PNY GeForce RTX 3080 XLR8 Gaming Uprising Epic-X RGB Triple Fan Edition GPU in benchmark popolari, per un confronto con altri modelli.

• FP32 Performance (Single-precision TFLOPS)
  309 place
• Battlefield 5
  346 place
• Shadow of the Tomb Raider
  332 place
• Crypto-Mining Ethereum Hashrate (MH/s)
  164 place
• Crypto-Mining Ergo Hashrate (MH/s)
  234 place
• Crypto-Mining Ravencoin Hashrate (MH/s)
  111 place
• 3DMark Benchmark
  341 place
• Crypto-Mining Vertcoin Hashrate (MH/s)
  153 place
